Technical Specification

Width diagram
Length diagram
Height diagram
Overall Length (closed) inc.drawbar 430cm
Overall Width 201cm
Internal Length (main body section) 283cm
Internal Width (main body section) 188cm
Towing Height 120cm
Wheels 185/70 R13
Overall Length (erected) 580cm
Overall Height (erected) 275cm
Interior Height (max) 244cm
Bed Size 1 190cm x 140cm
Bed Size 2 190cm x 140cm
Full Awning Width (optional) 600cm
Full Awning Depth (optional) 240cm
MIRO (mass in running order) 800Kg
MTPLM (Maximum Technical Permissible Laden Mass) 900/1050/1250/1500Kg
MTPLM – MIRO = User Payload 100/250/450/700Kg
Roof Payload (approx. depending on roof bar capacity) 75kg
Max Tow Ball Mass (Nose Weight) 75kg

The OPUS® weighs just 800kg; which means it can be pulled with any UK Car Driving License. We offer four different chassis options depending on your desired payload and category of your licence.

All-Road Capabilities

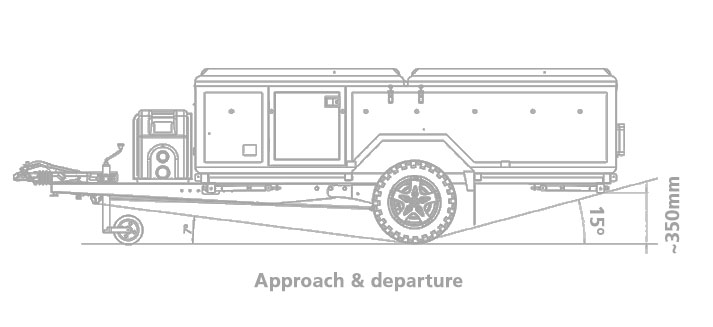

Elevation diagramApproach departure diagram Pitch diagramRoll diagram
